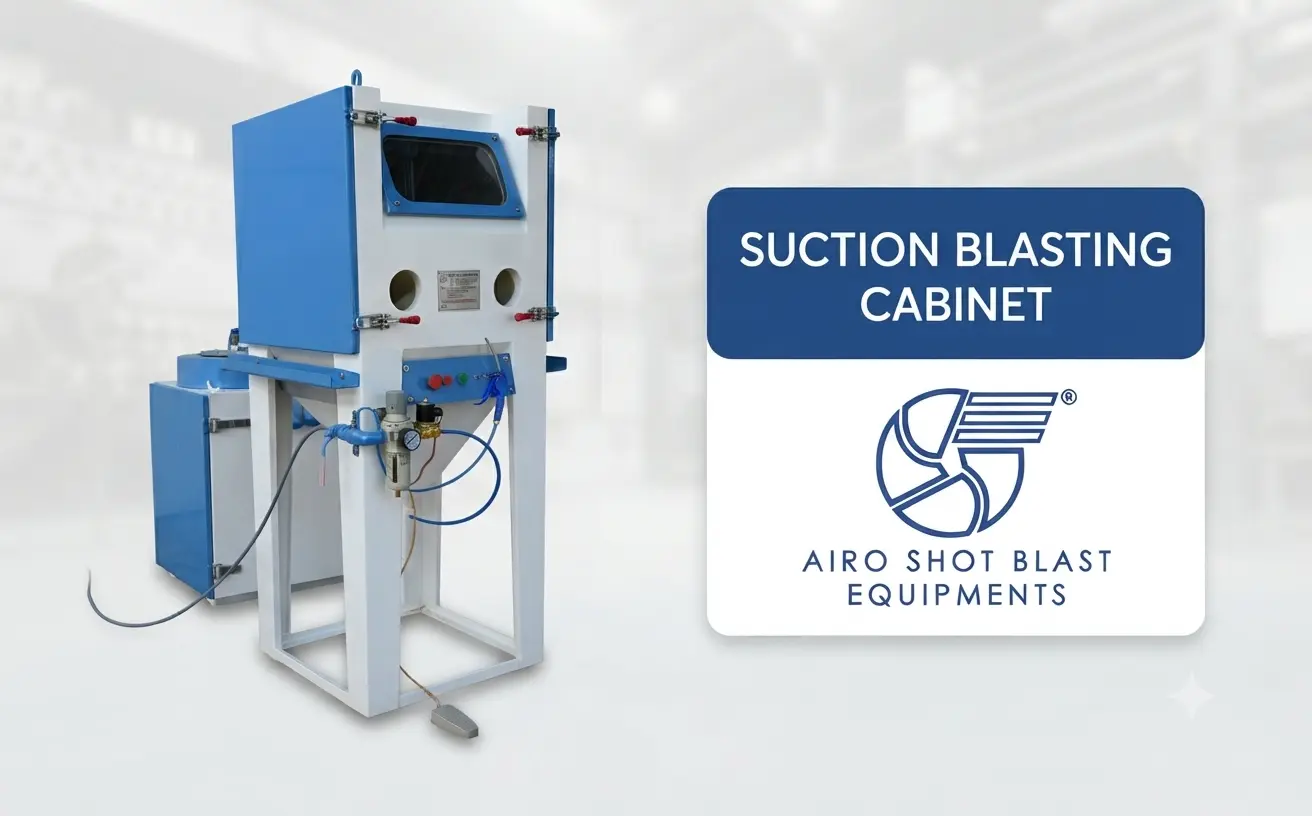

Suction Blasting Cabinet

A suction blasting cabinet is a cost-effective alternative to pressure blasting for controlled surface cleaning and finishing. Airo Shot Blast manufactures and supplies suction blasting cabinets for tool and mold shops, heat treatment, deburring, and precision cleaning. Prices start from ₹70,000 depending on the model. Contact us to buy a suction blasting cabinet, check specifications and availability, and get a quotation.

What Is a Suction Blasting Cabinet?

A suction cabinet works on the induction-suction principle: air moving through the blast gun draws abrasive media into the mixing chamber, where it combines with the air stream and is propelled out through the sand blasting nozzle. Depressing a foot pedal starts airflow through the gun; releasing it stops blasting - giving the operator direct, hands-free control over the cycle.

After striking the workpiece, spent media and dust fall through a grate into the cabinet's hopper for separation. A reclaimer draws the mixture in, screens out oversized particles, and returns clean, reusable media to the hopper - while a dust collector traps fines and dust before discharging clean air. This automatic recovery cycle is what keeps a suction cabinet's abrasive consumption low compared to open blasting.

How a Suction Cabinet Works?

• Foot pedal activation: Pressing the foot pedal opens airflow to the blast gun.
• Media draw: Air moving through the gun draws abrasive from the sand blasting hopper into the mixing chamber.
• Blast delivery: The air-abrasive mixture is propelled through the 6 mm-8 mm nozzle at up to 25 CFM at 80 PSI.
• Surface impact: The stream strips rust, mill scale, old coatings, and contamination from the part.
• Reclaim & separation: Spent media, dust, and fines fall through the grate into the hopper; usable abrasive is screened and recycled, while fine dust is pulled into the dust collector.
• Pedal release: Releasing the pedal instantly stops the blast stream, discharging only clean, filtered air.

This closed-loop cycle is what allows a suction sandblast cabinet to run continuously with minimal abrasive top-up.

Suction Blasting Cabinet vs. Pressure Blasting Cabinet - Which Should You Buy?

Recommendation: If you're preparing small-to-mid-sized components for painting, plating, or peening - and want the lowest cost of ownership - a suction blaster cabinet is the right starting point. Move to a pressure blasting cabinet only if you're removing heavy mill scale or thick industrial coatings at volume.

Our Standard Models

Options for Sand Blasting Cabinet available on request:

• Reverse pulse-jet cartridge filter dust collector (upgrade from standard)
• ON/OFF control accessories
• Rubber lining inside cabinet walls
• Higher-output blast guns in place of the standard gun
• Foot-operated treadle switch variants

Suction Blasting Cabinet Price

Suction blasting cabinet price depends on cabinet size and the number of blast guns fitted, ranging from ₹70,000 to ₹3.5 lakh across our three standard models. The gun itself matters too - a well-aligned gun keeps air and abrasive media flow efficient and reduces wear on the gun body over time, which affects running cost as much as the upfront price.

Why Buy Suction Blaster From Airo Shot Blast Equipments?

We've manufactured blasting equipment in Jodhpur since 2008 - 18 years, 8,000+ units installed, 25+ countries served. On suction cabinets specifically:

• Three standard models covering small through large component sizes, plus custom builds on request.
• Automatic media recovery with reclaimer and dust collector included as standard.
• ISO-certified manufacturing with export documentation handled in-house for international orders.
• Direct engineering support for matching cabinet size and gun configuration to your components.

Airo Shot Blast Equipments is an Indian manufacturer and exporter of suction blasting cabinets and abrasive blasting machines. Based in Jodhpur, Rajasthan, the company offers standard and customized solutions for surface cleaning, rust removal, paint stripping, finishing, and surface preparation. Its product range includes suction blaster, sand blasting machines, abrasive shot blasting machines, grit blasting machines, portable blasting machines, granite blasting machines, sand blasting helmets, sand blasting hoses, blast rooms, dust collectors, air compressors, abrasive media, spare parts, and thermal spray equipment.
