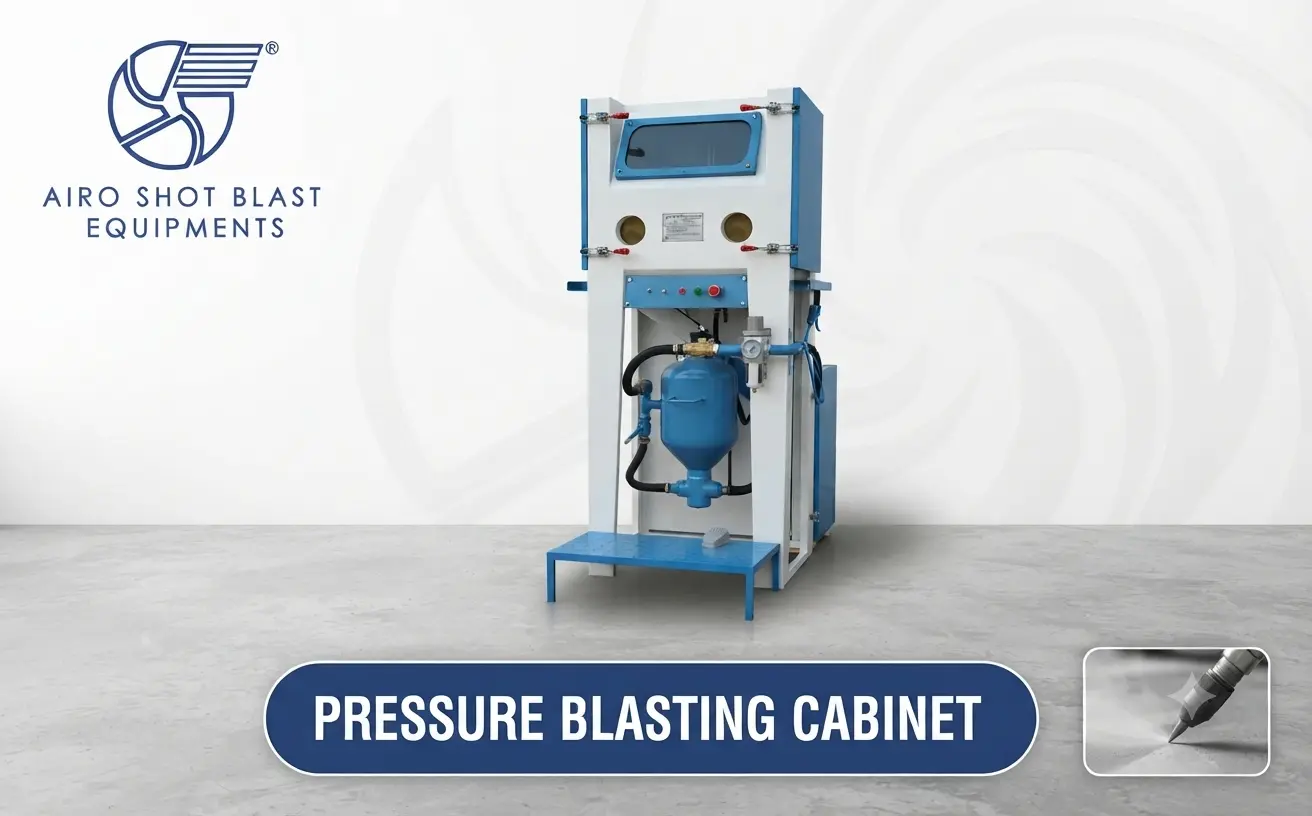

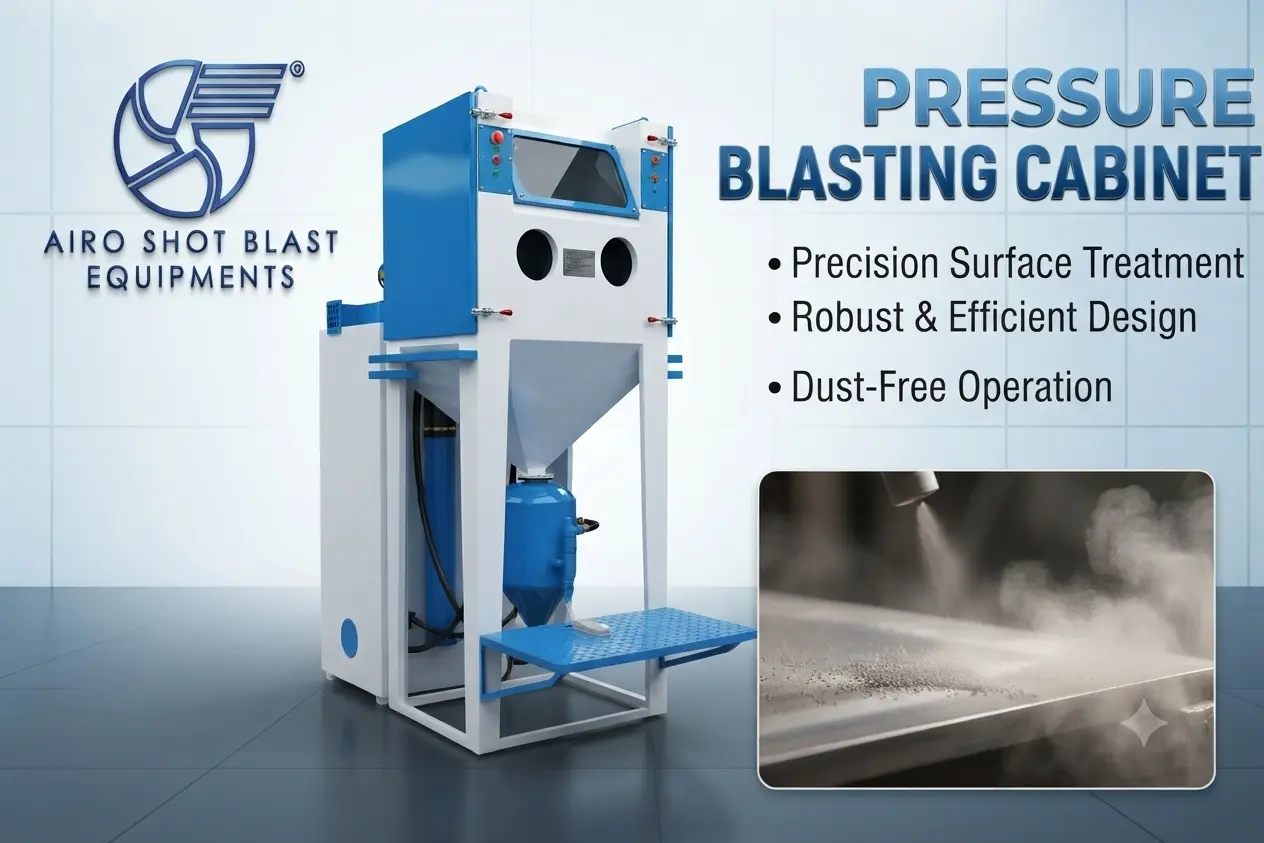

Pressure Blasting Cabinet

A pressure blasting cabinet is built for fast, aggressive cleaning of rust, scale, paint, and coatings. Unlike a suction cabinet, it pressurizes the abrasive directly for higher blasting force and faster surface preparation. Airo Shot Blast manufactures and supplies pressure blasting cabinets priced from ₹1.20 lakh to ₹5 lakh. Contact us to buy a pressure pot blast cabinet, check specifications, availability, and get a quotation.

What Is a Pressure Blasting Cabinet?

A pressure blast cabinet works on the direct pressure principle: a small pressure pot bolted beneath the cabinet's hopper pressurizes abrasive grit to match the compressed air pressure, so grit falls by gravity directly into the moving air stream. Because the air's only job is moving grit that's already pressurized, not sucking it up from a reservoir, this delivers substantially higher velocity at the nozzle than a suction blasting cabinet, completing the same job in less time.

The pressure pot refills automatically from the hopper above it, so the operator doesn't need to reload grit mid-job manually.

Available Models

Exact dimensions, capacity, and pricing vary by model - request a quote specifying your component size for the right recommendation.

How Direct Pressure Blast Cabinet Delivers Faster Cleaning?

Because grit is pressurized rather than sucked up through a hose, a direct pressure blast cabinet delivers meaningfully higher output than a comparable suction cabinet - the exact multiple depends on steel grit type, nozzle size, and air pressure, but the difference is substantial enough that pressure cabinets are the standard choice wherever cleaning speed and heavy corrosion removal matter more than upfront cost.

Standard Features of Pressure Blasting Cabinet

• Automatic grit refilling from the hopper into the pressure pot - no manual reload mid-job
• Full-width glass viewing window for clear visibility during blasting
• Generous side-door access for loading and positioning components
• Foot-pedal on/off control for hands-free blasting operation
• Tubular fabric bag dust collector with a large filter area, standard on every unit
• Manual filter shaker for maintaining dust collection efficiency
• Wear-resistant grit metering valve and nozzle
• Rubber-lined cabinet interior protecting both the cabinet and grit from wear
• Powder-coated cabinet and extractor housing for durability

Optional Accessories of Pressure Blasting Cabinet

• Higher-output blast guns in place of the standard gun
• Electric ON/OFF control accessories
• Reverse pulse-jet cartridge filter dust collector (upgrade from standard fabric bag)
• Foot-operated switch variants
• Motorized fabric bag-shaking system

Pressure Blasting Cabinet Price

Pressure blasting cabinet price ranges from ₹1.2 lakh to ₹5 lakh, depending on cabinet model (PB 9182, 12090, or 50120), dust collector type, and optional accessories.

Why Buy a Pressure Blasting Cabinet From Airo Shot Blast Equipments?

We've manufactured blasting equipment in Jodhpur since 2008 - 18 years, 8,000+ units installed, 25+ countries served. On pressure blasting cabinets specifically:

• Compact under-hopper pressure pot design, keeping the cabinet footprint efficient without sacrificing output.
• Standard fabric bag dust collection included, with reverse pulse-jet upgrade available.
• ISO-certified manufacturing with export documentation handled in-house for international orders.
• Direct engineering support for choosing the right model and dust collector configuration for your component size.

Airo Shot Blast Equipments is an Indian manufacturer and exporter of pressure blasting cabinets. Based in Jodhpur, Rajasthan, the company provides reliable and customized solutions for surface preparation, rust removal, cleaning, paint stripping, and finishing across various industries. Its product range includes sand blasting, shot blasting, grit blasting, abrasive blasting equipment, portable sand blasting machines, shot blasting machines, sand blasting cabinets, blast rooms, wet blasting cabinet, dust collectors, blasting nozzles, abrasive media, and thermal spray equipment.
