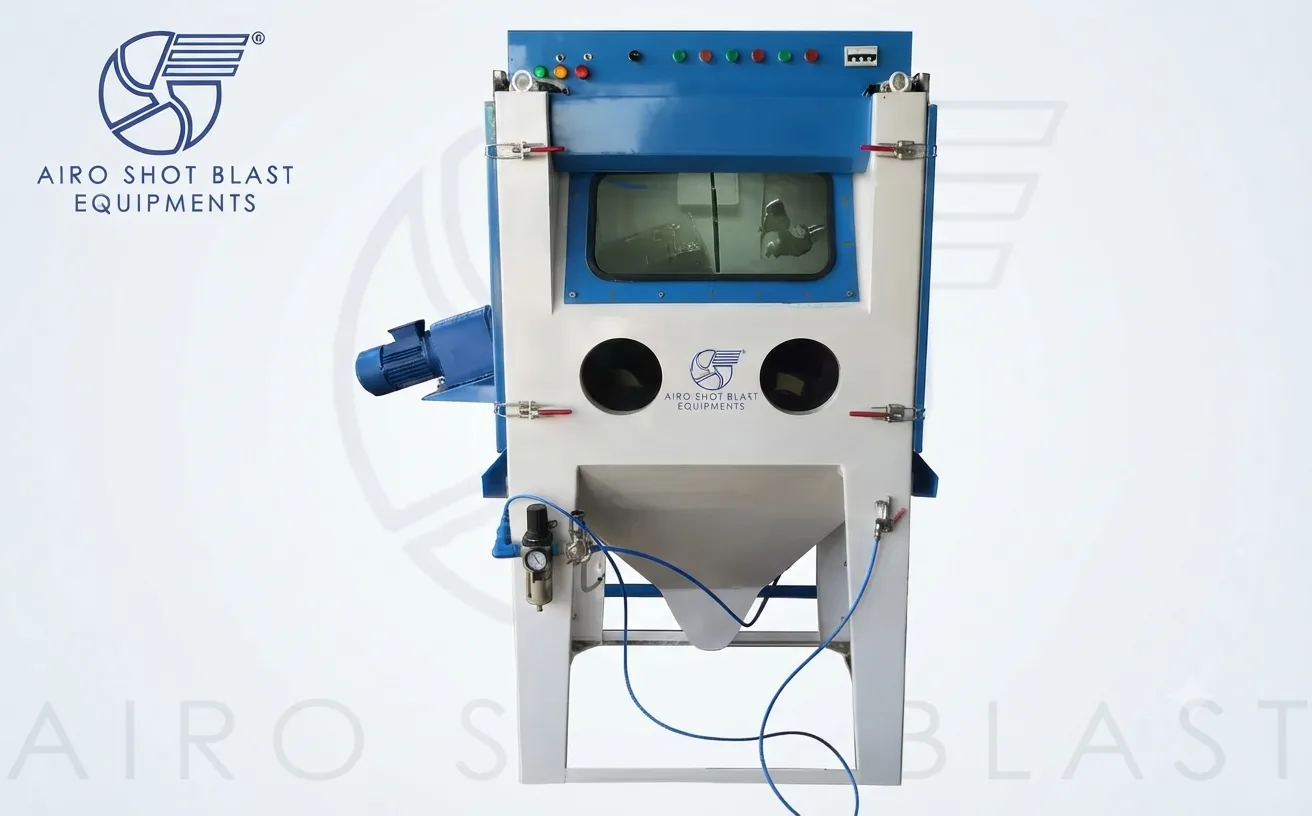

Grit Blasting Cabinet

Airo Shot Blast offers grit blasting cabinets for foundries, fabrication units, automotive manufacturers, engineering workshops, and industrial applications. Choose the right cabinet based on component size, abrasive media, production volume, and required surface finish. Request the latest grit blast cabinet price, specifications, and quotation today.

A grit blasting cabinet is a high-performance abrasive blasting machine designed for rust removal, paint stripping, descaling, deburring, and heavy-duty surface preparation of metal components. Its enclosed blasting chamber provides controlled abrasive impact, while the recovery and dust collection system helps contain and reuse blasting media for efficient operation.

What Is a Grit Blasting Cabinet?

A grit blast cabinet is a closed-form version of a grit blasting machine, combining the blasting mechanism, dust collection, and abrasive recycling in one sealed enclosure. Since the operator works through glove ports rather than standing in the blast zone, exposure to airborne grit and dust is significantly reduced compared to open-air blasting - though basic precautions during loading, unloading, and cabinet maintenance are still worth following, since dust can still be present at those points in the process.

A connected dust collector traps airborne particulate during operation, keeping visibility clear and the surrounding area cleaner than open blasting would allow.

How the Grit Blasting Cabinet Works

In a pressure or suction configuration, turning on the air compressor and cabinet switch supplies compressed air to a solenoid valve, which directs air toward the blasting gun. A moisture separator removes water from the air line, a non-return valve prevents grit from backing up into the moisture separator, and an air regulator controls flow into the gun. Once triggered, grit and air mix and exit through the sand blasting nozzle onto the component; spent grit and dust fall into the hopper for recovery, while the dust collector traps fines to keep the process clean.

A wet configuration works differently - steel grit is mixed into a water slurry before reaching the gun, producing a dust-free process suited to more delicate finishing work rather than aggressive rust removal.

Types of Grit Blasting Cabinets

Grit blaster cabinets come in three mechanisms, each working differently:

• Pressure Blasting Cabinet: pressurizes grit directly for faster, more aggressive cleaning
• Suction Blasting Cabinet: draws grit up through a hose using vacuum, for gentler, more controlled cleaning at lower cost
• Wet Blasting Cabinet: mixes grit with water for dust-free, precision finishing

A complete cabinet system consists of four elements: the grit blasting mechanism itself, the cabinet enclosure, a dust collector, and an abrasive recycling system.

Grit Blasting Cabinet Price

Grit blasting cabinet price ranges from ₹1.5 lakh to ₹3.5 lakh, depending on which mechanism (pressure, suction, or wet) and automation level (manual, semi-automatic, or automatic) you choose.

Why Buy a Grit Blasting Cabinet From Airo Shot Blast Equipments

We've manufactured blasting equipment in Jodhpur since 2008 - 18 years, 8,000+ units installed, 25+ countries served. On grit blasting cabinets specifically:

• All three mechanisms available - pressure, suction, and wet matched to your finish and speed requirements.
• Integrated dust collector and abrasive recycling across every configuration.
• ISO-certified manufacturing with export documentation handled in-house for international orders.
• Direct engineering support for confirming which mechanism and automation level fit your components.

We are India's leading manufacturer, supplier, and exporter of grit blasting cabinets, portable sand blasting machines, shot blasting hoppers, shot blasting cabinet, sand blasting machines, nozzles, and portable grit blasting equipment, all available at competitive prices.
