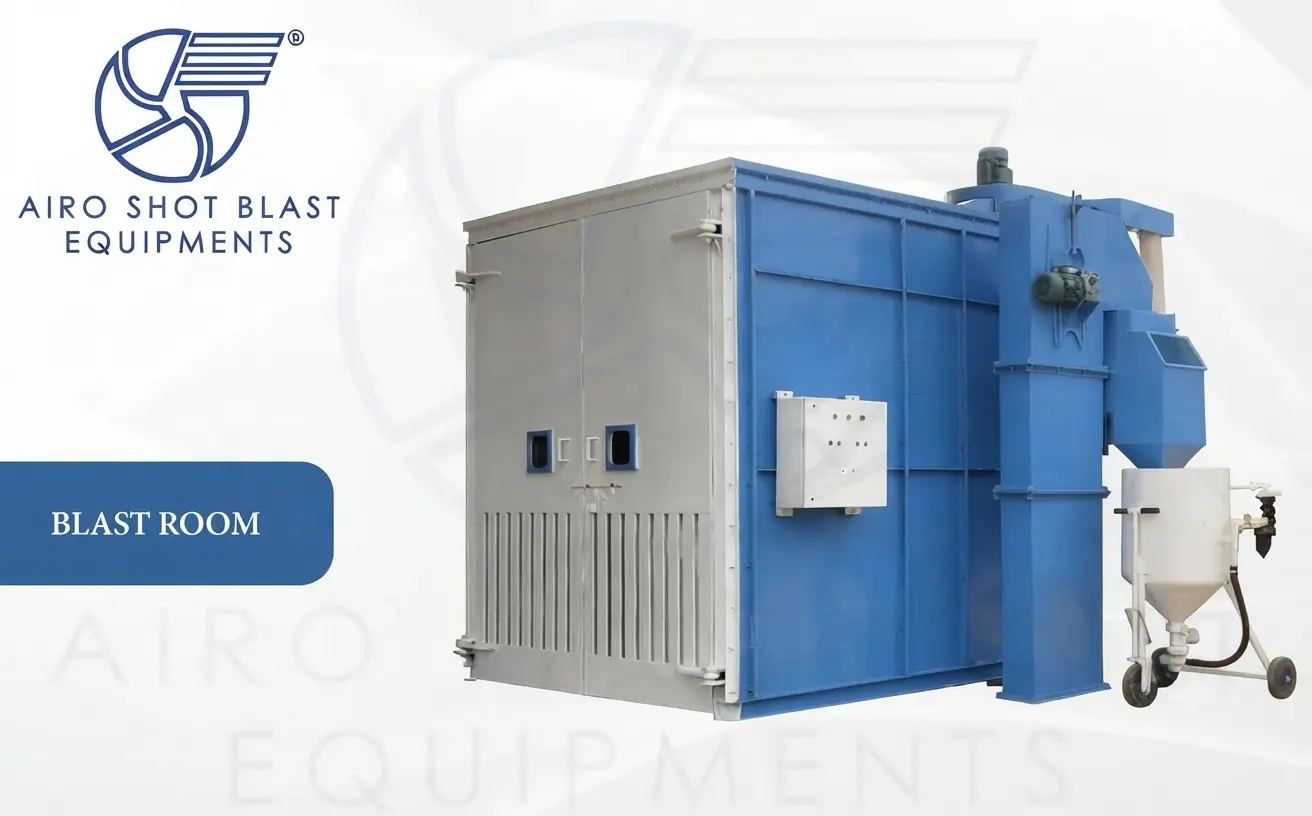

Blast Room System

We design and supply customized blast room system with portable machines, mechanical or vacuum recovery systems, and cyclone, fabric-bag, or reverse-pulse-jet dust collectors. The systems are suitable for rust and paint removal, descaling, deburring, and surface preparation before painting or protective coating.

Looking to buy blast room system? Contact Airo Shot Blast Equipments for custom design, specifications, current price, installation, and a commercial quotation based on your component size and production requirements.

A blast room system is an industrial solution for blasting large and heavy components that cannot fit inside conventional sand blasting cabinets. It provides a fully enclosed workspace with abrasive recovery, dust collection, ventilation, lighting, and operator protection, allowing efficient surface preparation of large structures.

What Is a Blast Room?

An abrasive blast room is an enclosure that contains abrasive blasting machine operations on large components while recovering the abrasive material for reuse, keeping fine dust from escaping into the surrounding air. A portable blasting machine sits inside the chamber, and the operator blasts the workpiece using a hose connected to it - the room's job is containment, safety, and abrasive recovery, not the blasting mechanism itself.

Companies preparing surfaces before applying protective coatings, especially on components too large for a cabinet, rely on a blasting booth as the standard solution.

Steel Fabricated vs. Civil Constructed Blast Rooms

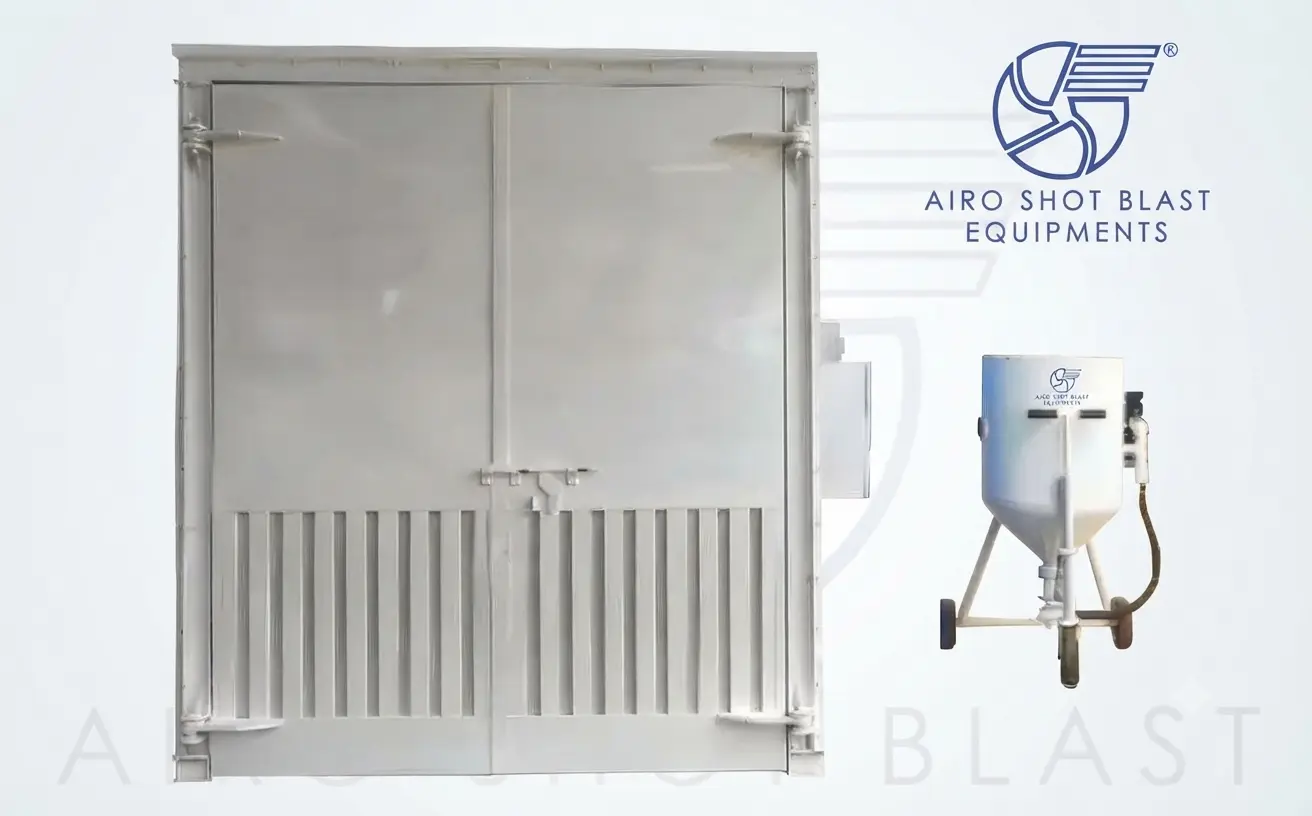

A blasting room can be fully steel fabricated or built as a civil (masonry) structure with a steel-fabricated door. In a civil-constructed room, the door includes air louvers that let in the airflow required by the dust collector system. Doors can be sliding or hinged, chosen based on your workshop's available space and access needs.

Modular (metallic) construction is a fully sealed, dust-tight, all-steel structure built from prefabricated components for simple bolt-together erection on-site - this design meets most customer requirements without the longer lead time of civil construction.

How Abrasive Recovery Works?

Two recovery methods are available:

• Mechanical recovery: a screw conveyor and bucket elevator carry spent abrasive to a media separator, which separates reusable shot from dust and debris. Usable shot falls into a sand blasting hopper and re-enters the cycle.
• Vacuum recovery: compressed air transfers abrasive through the system instead of mechanical conveyance.

Sizing Your Blast Room

The right enclosure size depends on three factors:

1. The size of the job - the room needs to comfortably fit your largest component
2. The number of operators working inside at once
3. Adequate working space around the job for safe, effective blasting access

Blast Room System Price

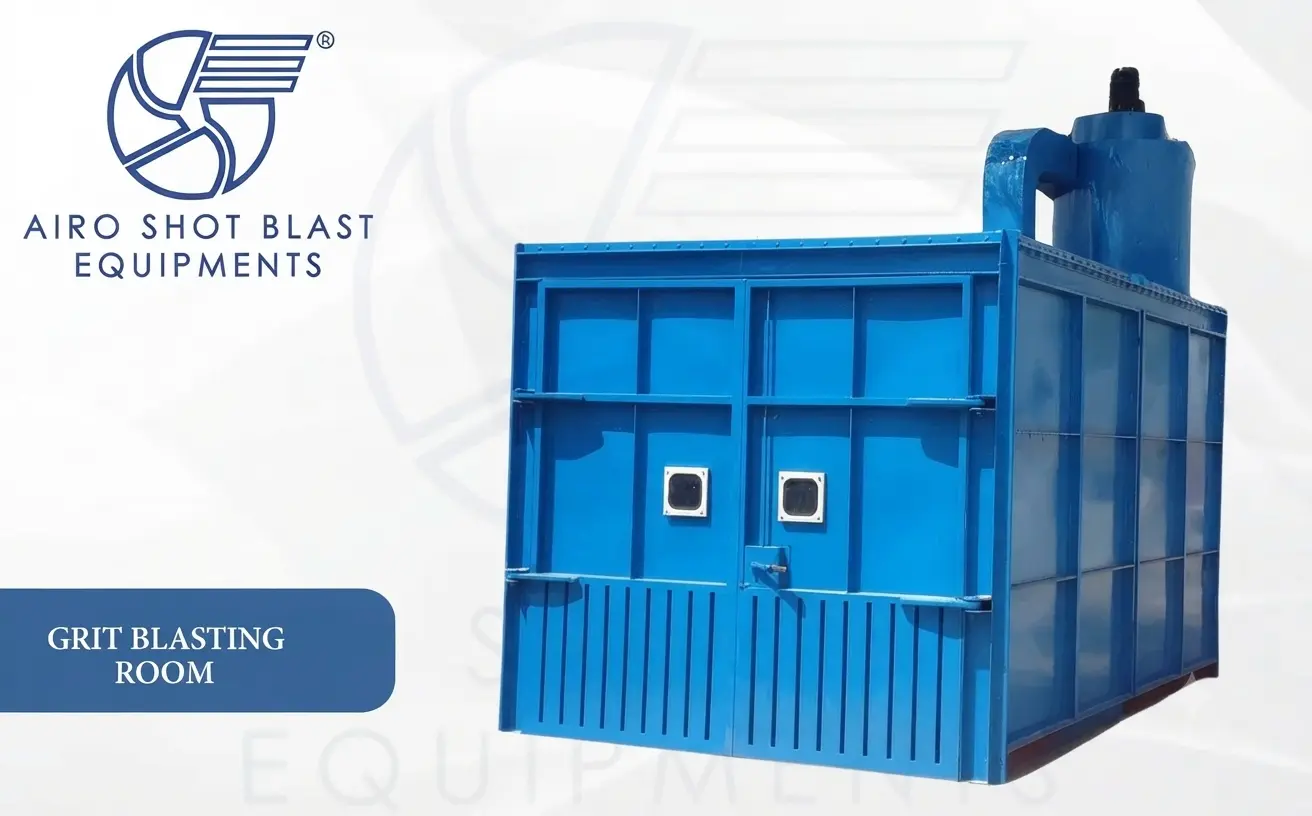

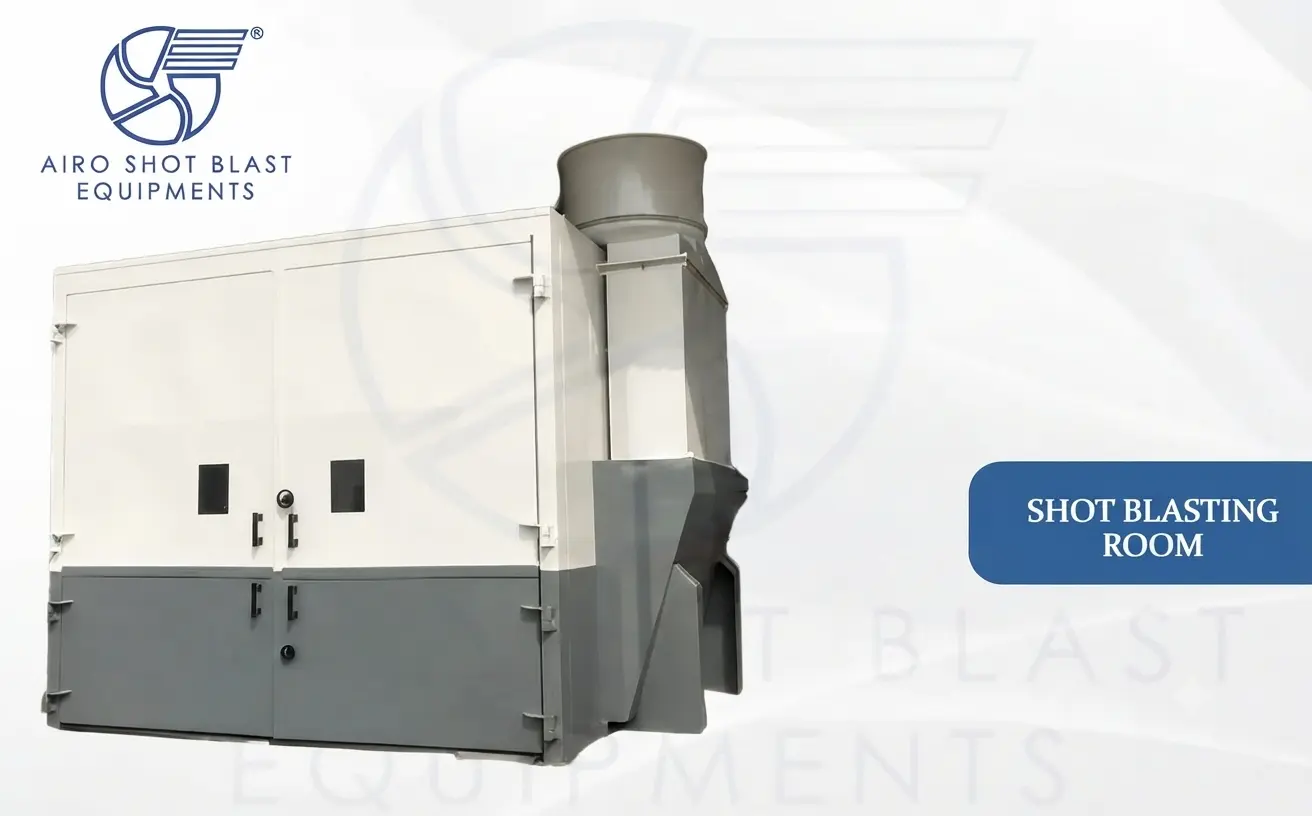

Blast room system price ranges from ₹5 lakh to ₹80 lakh, depending on room size, construction type (steel fabricated vs. civil), and dust collector specification. See also our shot blasting room and grit blasting room for more standardized configurations at a narrower price range.

Why Buy Blast Room From Airo Shot Blast Equipments?

We've manufactured blasting equipment in Jodhpur since 2008 - 18 years, 8,000+ units installed, 25+ countries served. On industrial blast room systems specifically:

• Full customization - steel or civil construction, sliding or hinged doors, and dust collector type matched to your workshop.
• Complete system supplied - chamber, portable sand blasting machine, recovery system, dust collector, lighting, and control panel in one package.
• ISO-certified manufacturing with export documentation handled in-house for international orders.
• Direct engineering support for sizing your room and choosing between mechanical and vacuum recovery

We are the leading manufacturer of abrasive blast rooms in India and a supplier of abrasive blasting machines, sand blasting machine, shot blasting machines, cabinet-type sand blasting machines, portable sand blasting machines, grit blasting machines, sand blasting rooms, pressure blasting cabinets, wet blasting cabinets, sand blasting spare parts, sand blasting nozzles, sand blasting helmets, and abrasive media, etc.
