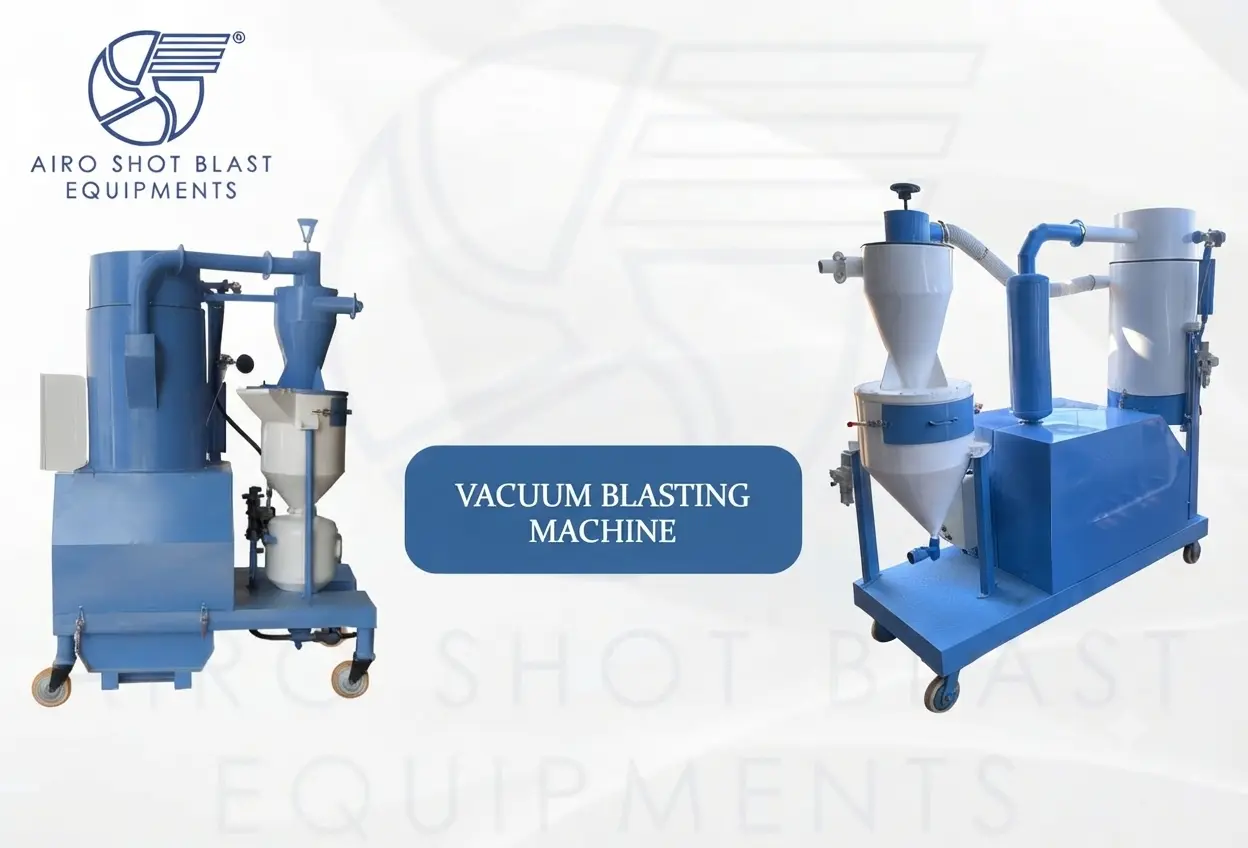

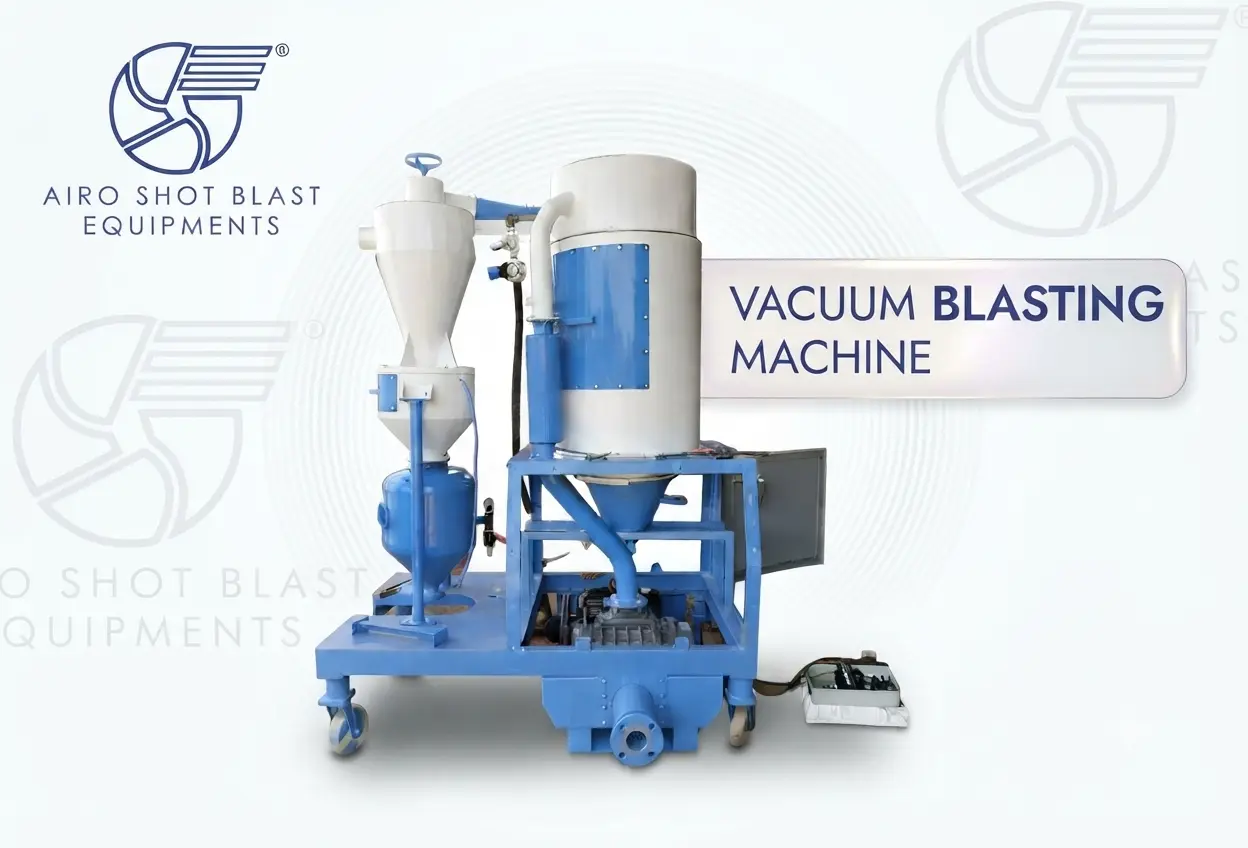

Vacuum Blasting Machine

A vacuum blasting machine combines abrasive blasting and abrasive recovery in one motion - the spent media is confined to the immediate work area and pneumatically sucked back into a storage tank as the operator blasts, instead of scattering into the surrounding environment. It's built for delicate surface prep work, one-person operation, and job sites where dust containment is essential.

What Is Vacuum Blasting Equipment?

Vacuum blasting equipment is a portable, single-operator surface preparation unit that blasts and recovers abrasive simultaneously, using suction generated by compressed air, a vacuum pump, or an electric blower to pull spent media back into a storage tank in real time. Unlike open blasting, no dust or abrasive escapes into the surrounding work area, which makes it suitable for indoor sites, occupied buildings, and jobs where nearby processes need to keep running during blasting. A vacuum blasting machine is also called a dustless blasting machine.

How Does a Vacuum Blasting Machine Work?

A lightweight blast head combines the sand blasting nozzle and vacuum pickup in one assembly, so abrasive is fired at the surface and immediately drawn back through a recovery hose in the same motion. The system runs on a pressure-pot design paired with compressed air filters and pressure regulators, keeping blasting speed consistent in a fully enclosed, dust-free cycle.

A special valve on the pressure vessel lets the operator adjust working pressure across a wide range - down to roughly 1 bar for delicate surfaces, up to the machine's standard operating range, without switching equipment. Interchangeable blast head fittings adapt the same machine to flat surfaces, inside and outside corners, and small or large-diameter pipes.

Key Features of Vacuum Blasting Machines

• Automatic, instant abrasive recovery - no manual collection needed between passes
• Dust-free operation - no flying dust or abrasive to contaminate the surrounding work area
• Easy disposal - collected dust empties directly into disposal bags
• No downtime for filter cleaning - automatic filter cleaning and dust discharge keep the cycle running
• Wide range of interchangeable brushes and blast heads to fit different surface types
• Easy to relocate - portable design moves between job sites or work areas without difficulty
• Safe for skilled and unskilled operators, given the fully contained blasting cycle

Vacuum Blasting Machine Components

• Lightweight blast head
• Blast hose and vacuum hose
• Recovery hose
• Set of surface brushes
• Pressure vessel
• Blast gun assembly
• Vacuum pump
• Castor wheels for mobility
• Cartridge filter dust collector element

Vacuum Blasting Machine Price

Vacuum blasting machine price ranges from ₹3 lakh to ₹8 lakh, depending on abrasive storage capacity, nozzle configuration, and dust collector specification. Request a quote with your application details for an exact figure.

Why Buy Vacuum Blasting Machine From Airo Shot Blast Equipments?

We've manufactured blasting equipment in Jodhpur since 2008 - 18 years, 8,000+ units installed, 25+ countries served. On a vacuum blasting configuration, that means:

• Tungsten Carbide-lined nozzle for extended service life under continuous abrasive flow.
• Adjustable working pressure (via the pressure vessel valve) to handle both delicate and standard blasting jobs on one machine.
• ISO-certified manufacturing with export documentation handled in-house for international orders.
• Direct engineering support for confirming abrasive compatibility and recovery capacity before you order

We are the leading vacuum blasting machine manufacturer and supplier of vacuum sand blasting machine, dustless blasting machines, abrasive blasting machine, sand blasting machines, grit blasting machine, granite engraving machine, sand blasting cabinet, sand blasting room, and abrasive media, etc.
