The sand blastiSandblasting Hopper: Working, Specifications, and Manufacturer Guide by Airo Shot Blast
A sandblasting hopper, also known as a portable sandblasting machine, works on the pressure blasting principle and consists of a blast generator designed to deliver a continuous, controlled stream of abrasive for efficient surface cleaning. It is one of the most reliable and widely used pieces of equipment for small to medium scale blasting work, valued for its simple operation and dependable performance.
How a Sandblasting Hopper Works
When the machine is not in operation and the blast storage tank is not pressurized, the abrasive media sits at the top of the sandblasting hopper. At the top of the hopper, a vibrating sieve is fitted to filter the abrasive media as it is loaded, ensuring only properly sized particles pass through into the system.
A mushroom valve controls the flow of abrasive between the hopper and the blasting storage tank. When this valve is in the down position, abrasive is transferred from the hopper into the blasting storage tank, preparing it for the blasting operation.
Once the mushroom valve is lifted, compressed air is switched on, and the abrasive storage tank becomes pressurized. This pressurization allows the abrasive to free-fall into the mixing tube, where it combines with the compressed air stream. From the mixing tube, the abrasive-air mixture is carried through the hose to the sand blasting nozzle, where it is propelled onto the target surface at high velocity.

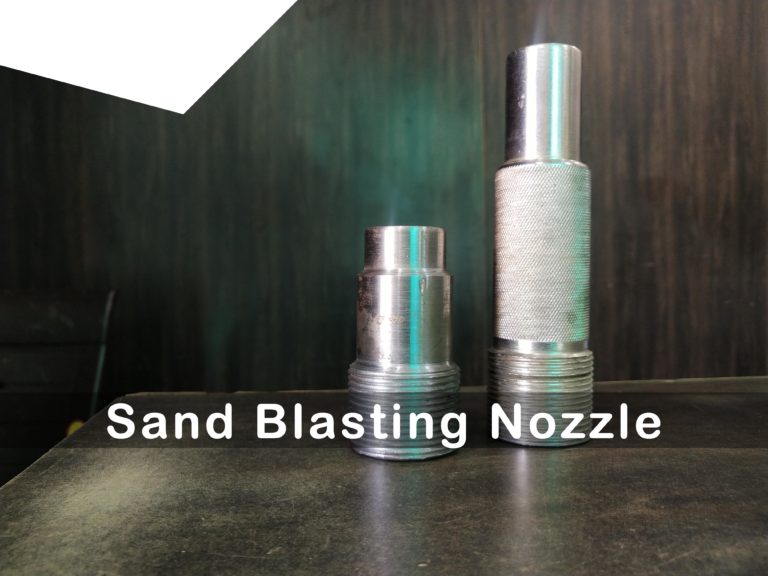

The sandblasting nozzle is specially designed and lined with tungsten carbide, giving it a notably long service life even under continuous, heavy duty use. Operation of the equipment is simple and convenient the machine can be turned on or off using a remote control, placing full operational control in the hands of the operator without requiring any additional electrical connection at the nozzle end.
This type of portable sandblasting machine is particularly well suited for smaller, accessory level tasks such as repair work and routine maintenance, where quick setup and easy handling are just as important as blasting performance.
Technical Specifications
| Specification | Detail |
|---|---|
| Abrasive Tank Capacity (Metallic) | 1000 Kg |
| Abrasive Tank Capacity (Sand) | 460 Kg |
| Volume | 284 Ltrs |
| Sandblasting Hose Length | 10 Mtrs |
| Sandblasting Hose I.D. | 32 mm |
| Sandblasting Nozzle Orifice (Tungsten Carbide) | 8 / 10 mm |
Applications of Portable Sandblasting Hopper
The versatility of a sandblasting hopper makes it suitable for a wide range of industries and applications, including:
- Railway coaches and their components
- Handicrafts industries and wooden industries
- Mild steel and stainless steel tanks and pipes
- Stone, marble, and granite surfaces
- Transformers
- Ships and boats
- Bridges and dam gates
- Turbines and rotors
- Vehicle bodies and automobiles
- Casting and forging components
- Heat exchangers
This broad range of use cases makes the sandblasting hopper a practical investment for industries that regularly need to clean, prepare, or refinish metal and non-metal surfaces.
Sandblasting Hopper Manufacturer
Airo Shot Blast is one of the largest sandblasting machine manufacturers in India. We offer a complete range of equipment, including automatic grit blasting machines, sandblasting machines, shot blasting machines, and abrasive media, all backed by dedicated in-house R&D (Research & Development) and offered at competitive pricing.
We supply our machines across major Indian cities, including Delhi, Noida, Faridabad, Gurgaon, Pune, Chennai, Jodhpur, Jaipur, Udaipur, Ahmedabad, Bangalore, and Kolkata, ensuring reliable access to quality blasting equipment no matter where your business is located.
Sandblasting Hopper Price
The price of a sandblasting hopper largely depends on the operating method and capacity of the machine. Medium capacity sandblasting machines, also known as automatic sandblasting hoppers, typically feature a medium-sized blasting pot (around 500 kg) and are often referred to as portable sandblasting machines, such as the Airoshot P7 500R. These machines offer a moderate cleaning rate, making them well suited for regular industrial and maintenance work. For higher-capacity requirements, businesses often move up to the sand blasting machine P7 1000R, which offers a larger blasting pot for continuous, heavy duty operations.
Whether you need a compact hopper for occasional repair work or a higher-capacity unit for regular industrial use, choosing the right sandblasting hopper depends on your production needs, budget, and the type of surfaces you work with most often. For businesses handling batch production or indoor finishing work, a pressure blast cabinet may also be worth considering alongside a hopper unit. With decades of manufacturing expertise, Airo Shot Blast continues to be a trusted choice for businesses across India and abroad looking for durable, high-performance sandblasting equipment.
Why Choose a Sandblasting Hopper for Your Business
Beyond its low cost and simple design, a sandblasting hopper offers several practical benefits that make it an attractive choice for businesses of all sizes. Its compact structure means it takes up minimal floor space, making it easy to store when not in use and simple to transport between job sites. Because the design relies on straightforward mechanical components such as the mushroom valve, vibrating sieve, and mixing tube maintenance is generally easier and more affordable compared to larger, more complex automatic blasting machine.
The remote controlled operation also improves safety on the job site, as operators can manage the blasting process from a safe distance without needing direct electrical wiring near the nozzle. This is especially useful in outdoor or field conditions where safety and mobility are top priorities.
For businesses just starting out with sandblasting operations, a sandblasting hopper offers an excellent balance between affordability, ease of use, and reliable performance making it a smart first investment before scaling up to larger automatic or cabinet-based systems as production needs grow.
