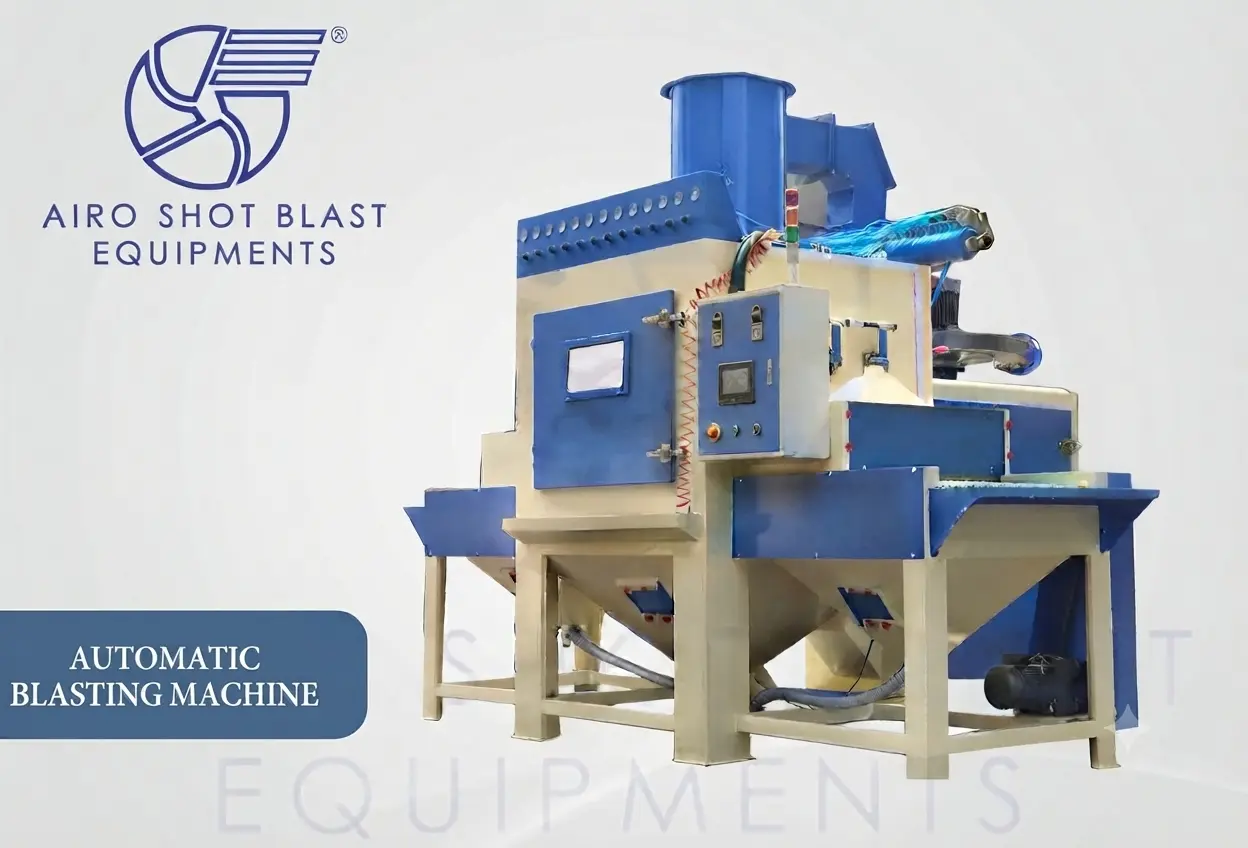

Automatic Blasting Machine

An automatic blasting machine is built for repeat production runs where consistency matters more than operator judgment call-by-call. Instead of a person manually aiming a blast gun at every part, the workpiece sits on a turntable while a reciprocating nozzle moves through a fixed blasting pattern, giving every part in the batch the same finish, at higher throughput than manual blasting. We manufacture automated blasting systems configurable by cabinet size, dust collector specification, and automation level, suited to forging, casting, and machined component finishing.

What Is an Automatic Blasting Machine?

An auto blasting machine finishes small and medium-sized components using a turntable and a motor-driven sand blasting nozzle, instead of requiring an operator to manually direct the blast at every part. It's used for descaling, deburring, and surface finishing on forged, cast, welded, heat-treated, stamped, and machined parts - the kind of repeat-part production where consistent, hands-off finishing pays for itself over manual blasting.

Two stepper motors drive the process: one rotates the turntable holding the workpiece, and the second moves the nozzle up and down in a reciprocating pattern to cover the full surface.

How Does an Automatic Sand Blasting Machine Work?

The workpiece sits on a turntable, which a stepper motor rotates while a second stepper motor moves the blasting nozzle vertically - between them, the whole surface gets even coverage without an operator manually repositioning the gun. The control panel has switches to set nozzle height (154, 250, 305, or 355 mm), turn the blasting cycle on and off, and adjust turntable rotation speed via a regulator.

Setup sequence:

• Start the air compressor and load abrasive media into the blasting cabinet.
• Place the workpiece on the turntable inside the cabinet.
• Compressed air, controlled through a solenoid or ball valve, drives abrasive through the nozzle onto the rotating workpiece.
• A non-return valve protects the moisture separator, and spent abrasive settles for recycling.
• A fabric bag dust collector at the rear of the cabinet keeps the process dust-free, capturing particulate for safe disposal or reuse.

Two configurations are available: a fully automatic setup (turntable and reciprocating nozzle handle the entire cycle, with the operator only loading, unloading, and switching the cycle on/off) and a manual glove-box setup, where the operator directs a hand-held suction gun through glove ports while viewing the part through a window - suited to lower-volume or irregularly shaped parts that don't suit a fixed nozzle pattern.

Operator Involvement

Even in the fully automatic configuration, a few tasks stay manual:

• Loading and unloading the workpiece onto and off the turntable
• Loading and unloading abrasive media into the sand blasting cabinet
• Switching the blasting cycle on and off, and adjusting nozzle height or table speed as needed between batches

This is intentionally minimal compared to manual blasting, where the operator directs the gun for the full cycle rather than just handling setup and controls.

Automatic Blasting Machine Price

Automatic blasting machine price ranges from ₹1.5 lakh to ₹21 lakh, and depends on three main factors:

• Cabinet size - larger working chambers for bigger components cost more than compact setups.
• Dust collector type and size - recovery and filtration capacity scale with cabinet size and production volume.
• Target cleaning rate - higher-throughput configurations for continuous production cost more than lower-volume setups.

For an exact automatic sand blaster price matched to your component size and production rate, request a quote with your specifications.

Why Buy Automatic Sand Blasting Machine From Airo Shot Blast Equipments?

We've manufactured automated blasting machines in Jodhpur since 2008 - 18 years, 8,000+ units installed, 25+ countries served. On automated blasting systems specifically, that means:

• Configurable automation level - fully automatic turntable systems or manual glove-box cabinets, matched to your part geometry and volume.
• Tungsten Carbide / Boron Carbide nozzles for extended service life under continuous abrasive flow.
• Automatic abrasive recovery as standard, reducing media consumption on high-volume runs.
• ISO-certified manufacturing with export documentation handled in-house for international orders.
• Direct engineering support for sizing your chamber, dust collector, and compressor requirements before you order.

Airo Shot Blast Equipments is an Indian manufacturer and exporter of automated blasting machines, sand blasting, shot blasting, and abrasive blasting equipment, serving industries with reliable solutions for surface preparation, cleaning, rust removal, paint stripping, and finishing. Based in Jodhpur, Rajasthan, the company offers both standard and customized blasting systems for different industrial requirements.

Our product range includes portable sand blasting machines, tumblast machines, spinner hanger machines, conveyor shot blasting machines, blasting cabinets, blast rooms, dust collectors, abrasive media, sand blasting machine spare parts, blasting nozzles, and thermal spray equipment. We also provide customized equipment and supporting solutions to meet specific surface preparation and production needs.
