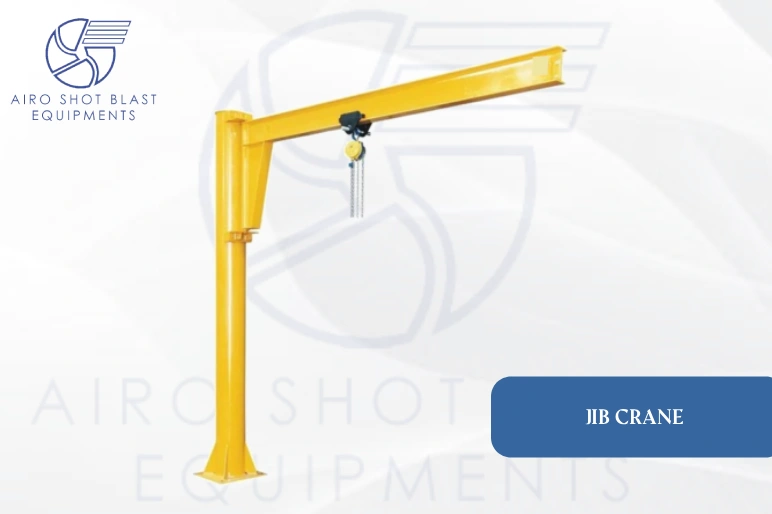

JIB Crane

A Pillar Mounted JIB Crane is a compact, efficient, and cost-effective lifting solution widely used in industrial workshops, maintenance bays, production units, and material handling areas. Designed to provide 360-degree slewing movement, these cranes ensure precise load positioning while occupying minimal floor space.

Manufactured in compliance with internationally accepted design and safety standards, our JIB cranes are engineered for reliability, durability, and operator safety, making them suitable for global industrial applications. Available in 1 Ton and 3 Ton load capacities, both variants are ideal for indoor lifting and shifting operations where controlled manual handling is preferred.

Key Features of Pillar Jib Crane

1. Space-Saving and Efficient Design: A pillar jib crane is a specifically designed lifting apparatus that allows the user to perform heavy lifts with maximum efficiency while taking up a minimum of floor space. Unlike large overhead cranes, they do not require a massive infrastructure, similar to compact machines like a Portable Shot Blasting Machine.
2. Easy Installation and Maintenance: The process of setting up the machine is easy, which requires only a strong concrete foundation. Less maintenance is required due to the low number of movable parts; thus, it is a cost-effective solution, just like a Tumblast Shot Blasting Machine.
3. Enhanced Safety and Productivity: Manual lifting is a common cause of employee injuries; thus, workplace safety might not be optimal. Pillar jib crane, as a part of an automation -material handling system, lowers the risks and increases the productivity of employees.
4. Cost-Effective Investment: If we compare a pillar jib crane with overhead cranes and gantry cranes, the former is more affordable and can deliver more benefits in return for investment.
5. Versatile Applications: They are also flexible to different industries such as automobile, engineering, transport, steel industry, logistics centers, often alongside various Shot Blasting Machine equipment.

Technical Specifications - 1 Ton JIB Crane

Technical Specifications - 3 Ton JIB Crane

Installation of JIB Crane

The JIB crane is foundation mounted and installed on a properly designed concrete base to ensure long-term stability and safe operation. Installation includes precise alignment of the pillar, secure anchoring, and assembly of the jib arm, slewing mechanism, trolley, and chain block. After installation, the crane is subjected to load testing at 125% of its rated capacity to verify structural integrity and operational safety. Upon successful testing, the system is commissioned for use, ensuring smooth slewing, reliable hoisting, and safe manual control for daily industrial operations.
