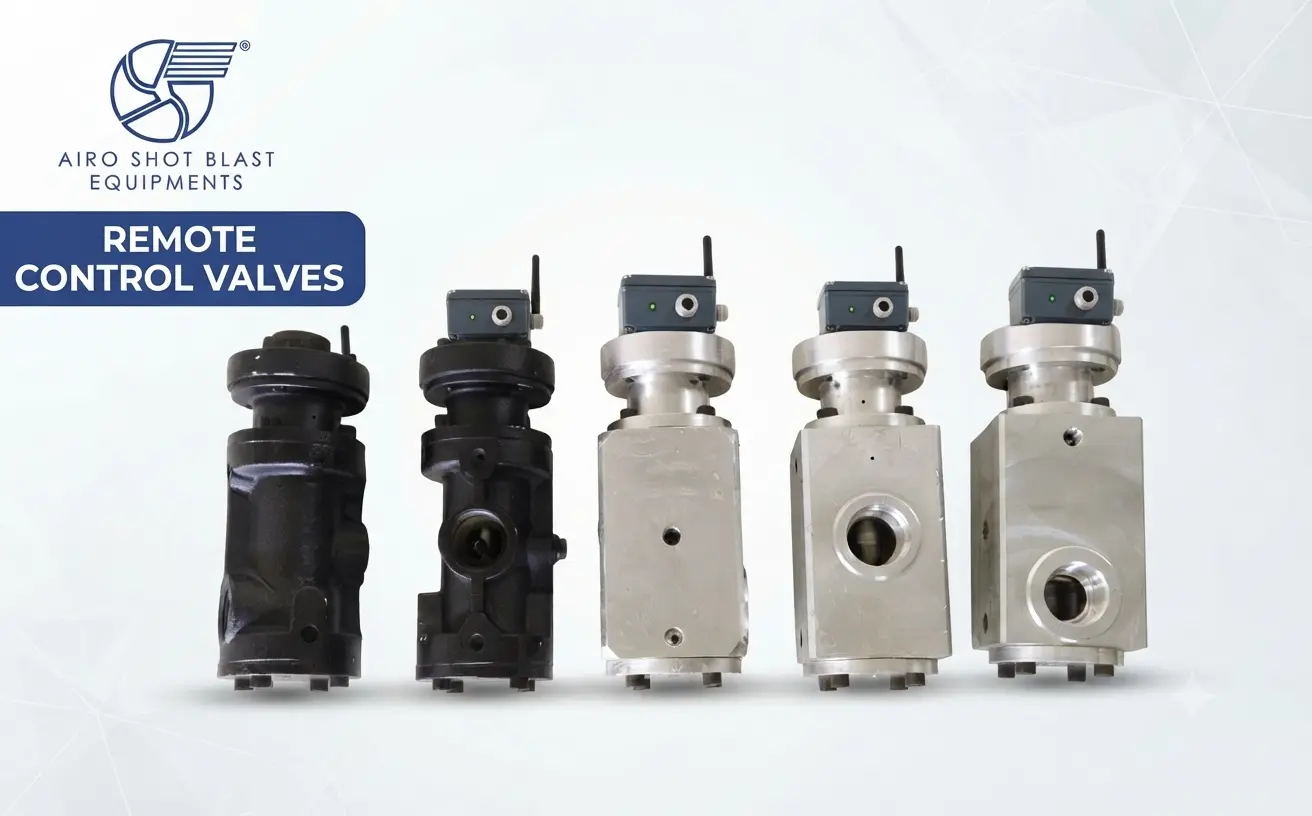

Remote Control Valve

A remote control valve is a key component for converting a manually operated sand blasting machine into a remote-controlled system. It allows the operator to start and stop abrasive blasting from the nozzle end using a dead-man handle, without returning to the blast pot. Airo Shot Blast Equipment supplies remote control valves for portable sand blasting machines such as the P7-300R and P7-1000R, as well as for replacement and retrofitting applications. The remote control valve price starts at ₹9,000, with options available based on machine requirements. Contact us to buy a remote control valve, check specifications, availability, and get a quotation.

What Is a Remote Control Valve?

A remote valve control is a pneumatic component that lets a single operator start and stop a sand blasting machine from the nozzle end, using a twin-line hose connected to a dead-man switch (DMS) handle at the gun. It's a normally closed, self-sealing, fail-safe valve - if the operator releases the handle for any reason, the machine automatically stops blasting.

An exhaust valve built into the top of the valve body handles air venting, and a single valve manages both air intake and exhaust, keeping the mechanism compact and reliable.

Model RM-1 vs. RM-2

How the Remote Control Valve Works?

The system runs on a twin-line pneumatic circuit between the deadman handle and the valve body. Here's the full cycle:

• At rest (handle not pressed), one air stream travels down the outbound line and escapes through an opening under the lever. The normally closed inlet valve stays closed, and the normally open outlet valve stays open - no blasting occurs.
• When the operator presses the deadman handle, that opening seals. Air in the outbound line reverses direction, returning through the inbound line to open the inlet valve and close the outlet valve.
• This pressurizes the machine and begins blasting - abrasive and airflow through the nozzle as long as the handle stays pressed.
• Releasing the handle immediately reverses the sequence: the inlet valve closes, the outlet valve opens, the machine depressurizes, and blasting stops.

Important limitation: pneumatic remote controls work reliably on blast hose lengths under 100 ft. Longer hose runs need a different control approach - check with our team if your setup exceeds this.

Remote Control Valve Price

Remote control valve price ranges from ₹9,000 to ₹12,000, depending mainly on two factors:

• Body material - aluminium bodies are typically lighter and cost differently than mild steel construction.
• Model - RM-1 and RM-2 differ in size and weight, which affects price.

If you're retrofitting an existing manual machine, confirm your blast hose length (under 100 ft for reliable pneumatic operation) and current valve setup when requesting a quote.

Why Buy Remote Control Valve From Airo Shot Blast Equipments?

We've manufactured blasting equipment in Jodhpur since 2008 - 18 years, 8,000+ units installed, 25+ countries served. On remote control air valves specifically:

• Fail-safe design - the valve automatically stops abrasive blasting machine operation if the operator releases the handle, for any reason.
• Genuine replacement part for our own R-series machines, not a generic aftermarket substitute.
• ISO-certified manufacturing with export documentation handled in-house for international orders.
• Direct engineering support for confirming which model (RM-1 or RM-2) fits your machine and hose length.
