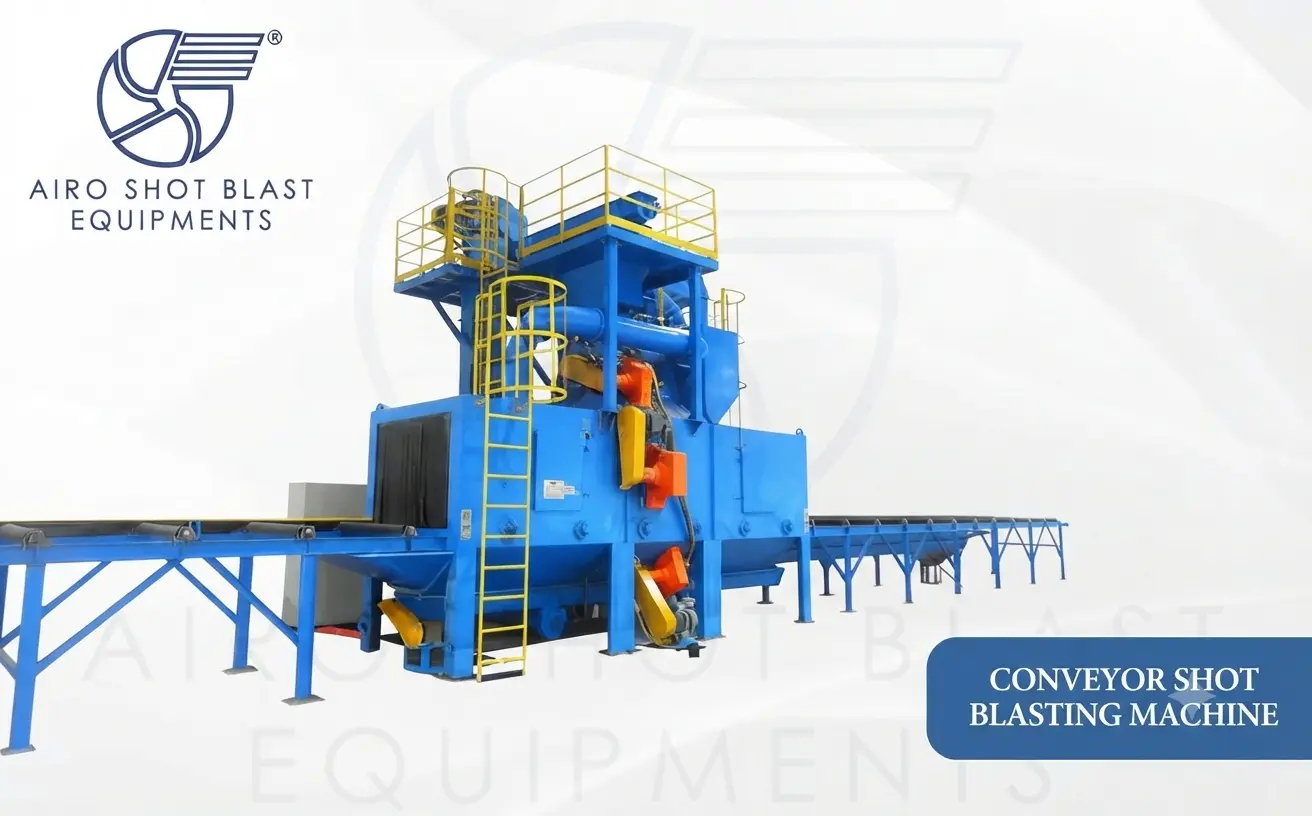

Conveyor Shot Blasting Machine

Get continuous, high-volume surface cleaning with our conveyor shot blasting machine, built for production lines where batch-and-stop cycles cost too much time. In stock and ready to ship, ISO-certified, priced from ₹15 lakh to ₹50 lakh depending on configuration. Available in roller, diabolo, and chain conveyor types, matched to flat stock, round stock, or hanging components.

What Is a Conveyor Shot Blasting Machine?

A roller conveyor shot blasting machine cleans components continuously as they move through a shot blasting room, rather than loading one batch and stopping the line between cycles. Multiple blast wheels positioned around the conveyor line throw steel shot or grit at the component from several angles simultaneously, giving full coverage in a single pass - which is what makes this configuration suited to structural steel, pipe, and high-volume component lines where stopping between batches would bottleneck production.

Types of Conveyor Shot Blasting Machines

Roller Conveyor Shot Blasting Machine

A roller conveyor moves flat and structural stock, plates, sheets, and I-beams, horizontally through the blast chamber on a bed of rollers, with blast wheels positioned above and below to clean both faces in one pass. This is the standard configuration for structural steel fabrication and plate processing lines.

Diabolo Conveyor Shot Blasting Machine

A diabolo conveyor shot blasting machine uses specially shaped diabolo (hourglass-profile) rollers that both convey and rotate cylindrical stock - pipes and round bar as it passes through the blast chamber. The rotation is what makes this configuration work: it exposes the full circumference of the pipe to the blast stream, rather than just the top surface, giving complete 360° cleaning in a single pass.

Chain Conveyor Shot Blasting Machine

A heavy-duty chain conveyor with hard fixtures loads components - such as axles - transversely, then moves them horizontally into the blast chamber, where blast wheel stations positioned laterally clean the component before it exits through an outlet tunnel. This configuration suits components better handled hanging or fixtured than laid flat or rolled.

Conveyor Shot Blasting Machine Price

Conveyor shot blasting machine price ranges from ₹15 lakh to ₹50 lakh, depending on conveyor type (roller, diabolo, or chain), number of blast wheels, and dust collector specification.

Why Buy Conveyor Blasting Machine From Airo Shot Blast Equipments?

We've manufactured blasting equipment in Jodhpur since 2008 - 18 years, 8,000+ units installed, 25+ countries served. On conveyor systems specifically:

• Configuration matched to your component shape - roller, diabolo, or chain conveyor- not a one-size-fits-all system.
• Manganese steel chamber lining and hard-lined chain drives for long service life under continuous production use.
• PLC-programmed operation for consistent, repeatable cleaning cycles.
• ISO-certified manufacturing with export documentation handled in-house for international orders.

Conveyor Shot Blasting Machine in India at a low price with the best quality. The axles are blasted in a single pass and come out through the outlet tunnel. For protection against abrasion, the entire cabinet is lined with a manganese steel sheet. The chain drive is protected by hard-liners. The entire operation of the machine is meticulously programmed by a PLC. The Conveyor Shot Blasting Machine contains an elevator, reverse pulse jet dust collector System, abrasive Separator, and Control Panel with PLC. We also provide shot blasting machines, abrasive blasting machines, grit blasting machines, shot blasting rooms, shot blasting cabinets, rotary barrel shot blasting machine, granite engraving machine, air compressor, dust collector, and abrasive media.
