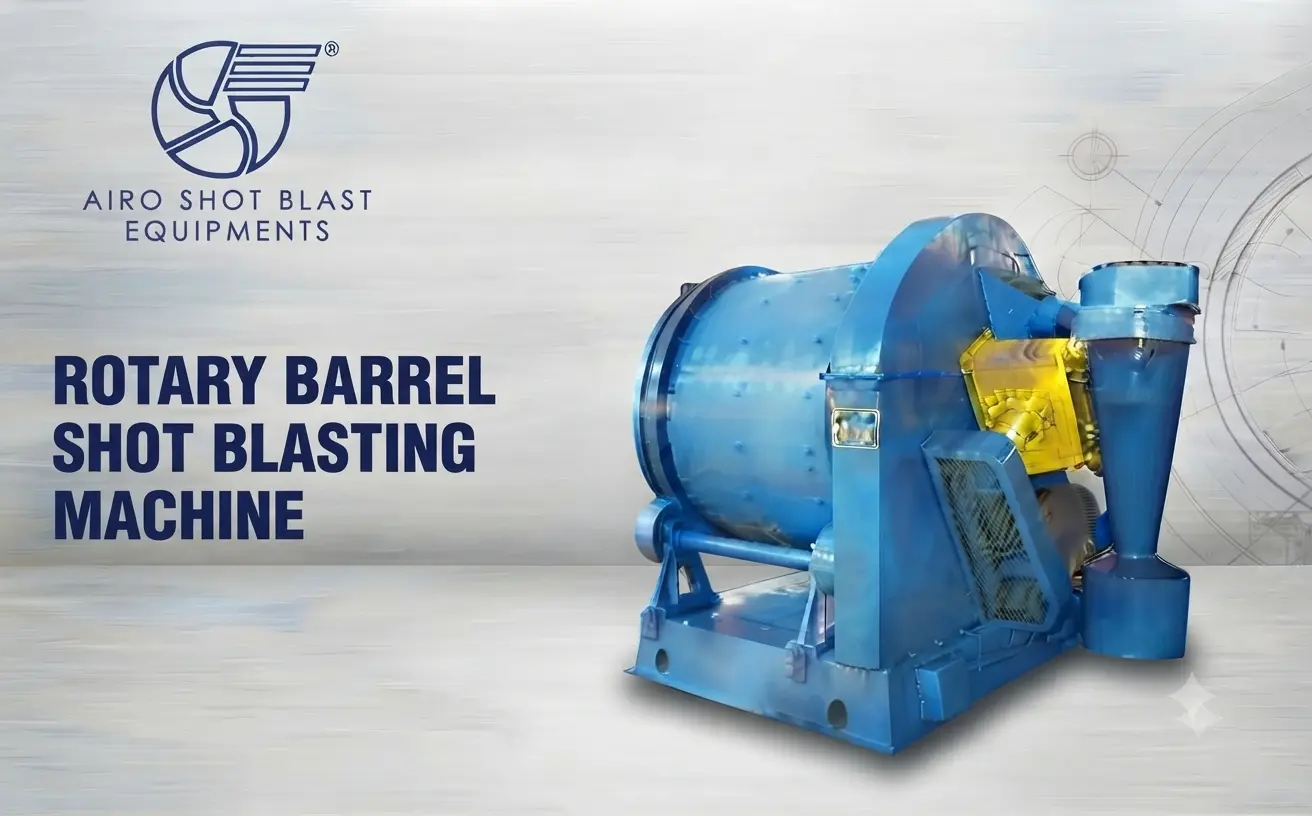

Rotary Barrel Shot Blasting Machine

Airo Shot Blast Equipments offers rotary barrel shot blasting machines with manual, semi-automatic, and automatic operation, suitable for foundries, forging units, fabrication shops, and engineering industries. Request a price and quotation today for the right machine capacity, specifications, and configuration for your production requirements.

A rotary barrel shot blasting machine is an efficient industrial solution for manufacturers looking to buy reliable equipment for batch cleaning, descaling, deburring, and surface finishing of small and medium-sized metal components. Its slow-speed tumbling action provides uniform abrasive coverage while gently handling delicate castings, helping reduce processing costs and improve production efficiency.

What Is a Rotary Barrel Shot Blasting Machine?

A rotary table shot blasting machine, also known as a drum-type shot blasting machine, loads a batch of components into a rotating drum, where a high-performance blast wheel throws steel shot at the load as it tumbles. This is designed for small to medium iron and alloy ferrous castings, steel, forgings, heat-treated parts, pressings, and fabrications, cleaning them at the lowest possible cost through rugged, low-maintenance construction.

The blast wheel is the most effective abrasive-throwing unit available, capable of projecting the optimum quantity of abrasive media per horsepower, meaning more cleaning power per unit of energy consumed than less efficient throwing mechanisms.

How the Rotary Barrel Machine Works?

Workpieces load into a standard drum feeder, which elevates and positions itself in front of the rotary table shot blasting machine door. Once the door opens, the feeder swings up and unloads the workpieces into the rotary drum. This handling method can be adjusted for gentler treatment depending on how delicate the components are, and the drum's movement can be controlled either manually or via PLC.

Before blasting begins, the equipment door closes and the barrel swings into position in front of the high-performance turbine, simultaneously rotating on its own axis. Blasting then continues until the workpieces are thoroughly mixed and blasted from all sides; the inside of the blasting chamber is lined with materials highly resistant to steel shot and grit impact, and the direct blast zone is protected by replaceable, high-resistance steel plates.

The door stays closed throughout blasting and can only reopen once the shot blasting room is dust-free, a process that takes roughly 10-15 seconds, aided by low-pressure exhaust that clears dust into the filter unit during the cycle itself.

After blasting, the barrel swings into the unloading position, where the quantity and unloading intensity can be controlled through dosed emptying. The treated workpieces pass over a moving screen that separates residual abrasive from the finished parts before they're transported to collection boxes.

RBF-1 vs. RBF-2 - Model Comparison

Key Features of Rotary Barrel Shot Blasting Machine

• Simple, reliable blast wheel construction for consistent abrasive throwing performance
• PLC-controlled operation for easy, dependable use with electronically pre-set blasting cycles
• Durable, rugged construction built for minimum maintenance
• Abrasive segregator protecting the blast wheel from damage
• Bag filter dust collector improves productivity while reducing air pollution
  Abrasion-resistant rubber belt lining that softens component impact and reduces operating noise
• Centrally located controls for straightforward operation

Rotary Barrel Shot Blasting Machine Price

Rotary barrel shot blasting machine price ranges from ₹4 lakh to ₹20 lakh, depending on model (RBF-1 or RBF-2) and dust collector specification. Airo Shot Blast Equipments is one of the best rotary shot blasting machine manufacturers in India. We have the best portfolio of shot blasting machines with the best quality. We also provide sand blasting machine, shot blasting machines, grit blasting machines, abrasive blasting machines, sand blast rooms, spare parts, air compressors, thermal spray guns, & abrasives, etc with the best quality at the best price to our customers.

Why Buy Rotary Shot Blasting Machine From Airo Shot Blast Equipments?

We've manufactured blasting equipment in Jodhpur since 2008 - 18 years, 8,000+ units installed, 25+ countries served. On rotary table blast machines specifically:

• Two model sizes (RBF-1, RBF-2) covering a 100-150 kg capacity range, so you're not overpaying for capacity you don't need.
• Replaceable, high-resistance steel plates in the direct blast zone, keeping wear costs down over the machine's service life.
• PLC-controlled cycles for consistent, repeatable results batch after batch.
• ISO-certified manufacturing with export documentation handled in-house for international orders.
