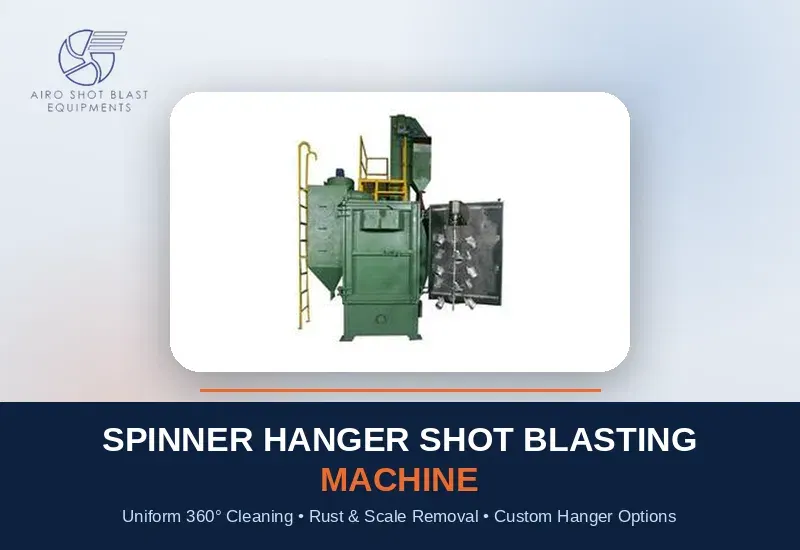

Spinner Hanger Shot Blasting Machine

In the Spinner hanger type shot blasting machine, the component will be hung and can be rotated. The Hanger is mounted on the doors of the shot blasting machine. For the blasting operation, the door of the shot blast machine is opened and components are loaded onto the hanger. The blast wheel unit is operated when the door is closed. Two Nos. of blast wheel stations are located strategically around the cabinet and fires shots on rotating components. After the blast cleaning cycle is over, the blast wheel is shut off and the door is opened for the unloading of components. The components are shot blasted homogeneously all around on the rotating hanger and blast clean the components. In this type of airless shot blasting machine, the shots are propelled by centrifugal blasting wheels. Automation is provided by tunnel, swing table, tumblast, rotary barrel, hanger type, etc.

Spinner Hanger Shot Blasting Machine:

Major parts of the spinner hanger shot blasting machine include, an overhead conveyor for job conveying, a blast wheel for giving high production output, & the media recovery consists of a bucket elevator, rotary screen separator screw conveyor, etc. & pleated bag reverse jet type dust collector.

Hanger Shot Blasting Machine

Our standard list of hanger shot blasting machine comprises 6 machine dimensions. Amongst other matters, the selection of the relevant machine idea depends on the component involved, the expected level of performance & last but not least on a customer’s requirements regarding an optimized generation process.

In the situation that a standard model does not fit your surface preparation requirements, we will develop a customized shot blast machine thought for you.

Our team of experts greets your specific questions & looks forward to helping you...

Hanger Type Shot Blasting Machine

Hanger type shot blasting machine is among the various flexible types of shot blasting equipment. They are practiced to remove rust, scale, burrs & sand from many varieties of the component. Hanger type shot blasting machine is also utilized for the finish shot blasting of sensitive components or to roughen workpiece surfaces for consequent coating.

Applications of Hanger Shot Blast Machine

As a rule, the hanger type shot blasting machine is given both for batch or continuous processing. However, there are various intermediate devices that are located toward different kinds of overhead conveyor methods. In many cases, various methods such as blasting, painting, and consequent drying can be interconnected via the overhead conveyor method. This makes it reasonable to tap a tremendous potential for streamlining the method workflow.

Additional processing alternatives are created by using different kinds of workpiece holders to assist in the process of feeding workpieces to the blasting machine. In many cases, standard holders such as disks, baskets or rods can solve the application requests. However, the increasingly specific needs of our customers often lead to the making of customized solutions.

Operation of shot blasting machine

The component is placed in Component holders or is suspended directly from the working gear’s rotating hook. The Component is then shifted into position in front of the shot blasting equipment. An automatic feed device then advances the component to the first blasting position.

After the shot blasting performance works, the equipment door is automatically locked. As the component rotates, they are shot blasted at three various blasting stations according to the pre-set shot blasting times.

The shot blasting grit is continuously cleaned, recirculated & reused. A shot metering device maintains the cleaned shots from the shot storage locker to the high-performance wheel.

Upon completion of the shot blasting period & after the shot blast wheel has come to a complete stop, the machine door opens automatically & the suspended component return to their primary position.

A dust collector unit creates the partial vacuum required to maintain the dust-free operation of the shot blasting unit. The extracted air is cleaned in a dust collector unit.
