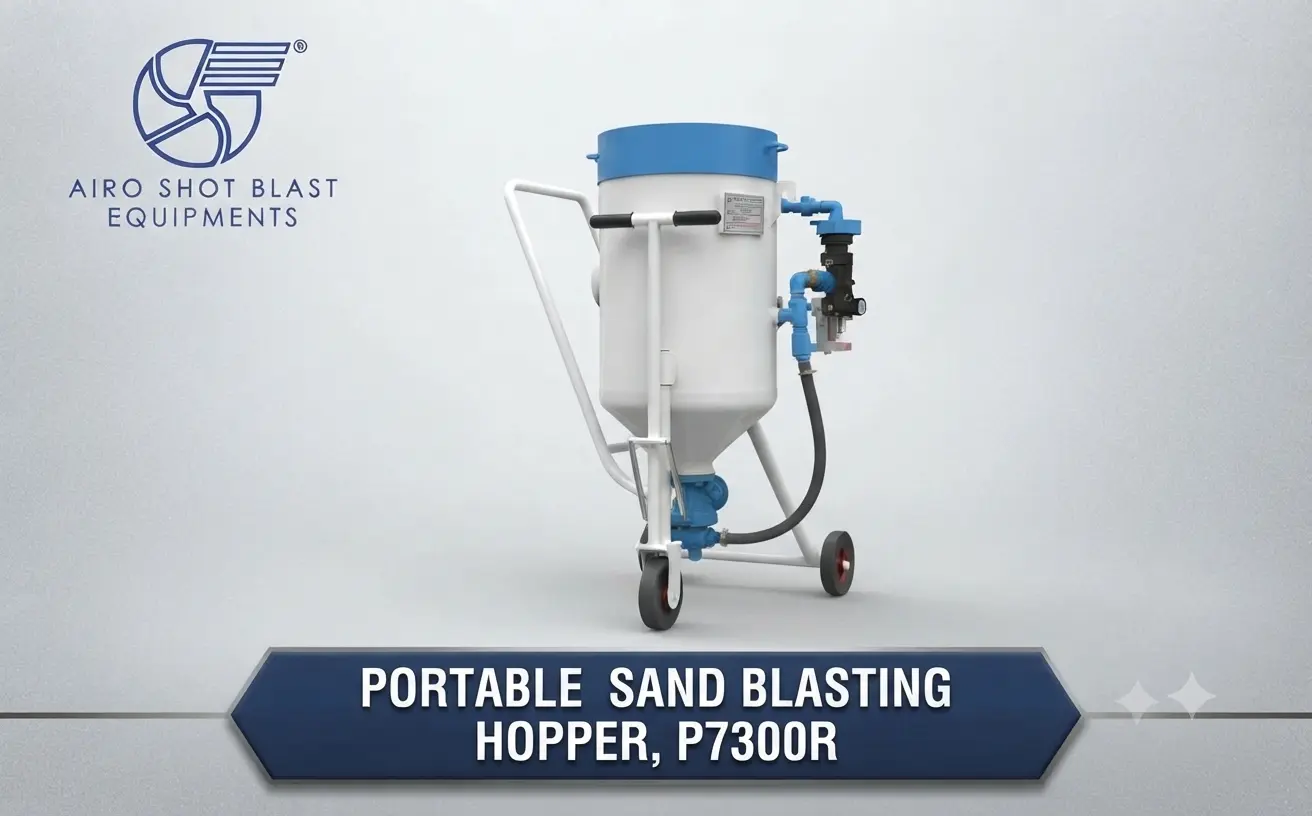

Sand Blasting Hopper, P7300R

Sand Blasting Hopper

Sand blasting hopper or portable sand blasting machine (mobile sand blasting or portable air sandblaster) are used for the process of smoothing, shaping, and cleaning a surface by injecting solid particles across that surface at high velocities, Sand Blasters provides a more even finish with no problems at corners or cracks. A medium-capacity sand blasting machine (SBP7300) or sand blasting hopper is a machine with a remote controller. With this remote controller in Sand Blasting Hopper, the operator can work easily as this remote controller is in the hands of the operator by which he can ON/OFF the machine when required. In this, there is a big blasting pot as compared with small capacity sand blasting or sand blasters. We are also automatic sand blasting machine and portable air sandblaster manufacturers in Rajasthan India.

Sand Blasting Machine, P7 300R

Sand blasting Hopper tank capacity:

Metallic                                                300 Kg.

Sand                                                    130 Kg.

Volume                                                85 Ltrs.

Std. Blast Hose Length                        5 mtrs.

Blasting Hose I.D.                                 19 mm.

Sand Blasting Nozzle Orifice                6 mm

[Tungsten Carbide Lined]

Overall Dimensions of Sand blasting Hopper:

Height                                                  1291 mm

Diameter                                              461 mm

Weight                                                 141 Kg.

Air Filter & Pressure Gauge fitted       1 No. Each.

Automatic Exhaust Valve fitted 1 No.

Abrasive Control through

Pinch Valve fitted                                1 No.

Approx. Cleaning Rate                        5-9 Sq. Mtrs./Hr.

[Only for guidance]

Compressed air required at 80 psi.       85 Cfm.

Recommended Abrasive Size              25 to 80 Mesh.

UTILITIES (To be arranged by the user):

Dry & oil-free compressed air and its connection up to the machine’s inlet. Abrasive media required for sand blasting machine.

NOTE

The above specification is for guidance and subject to change without notice. Data/Dimension furnished in chart super cedes data/Dimension in literature, wherever applicable.
